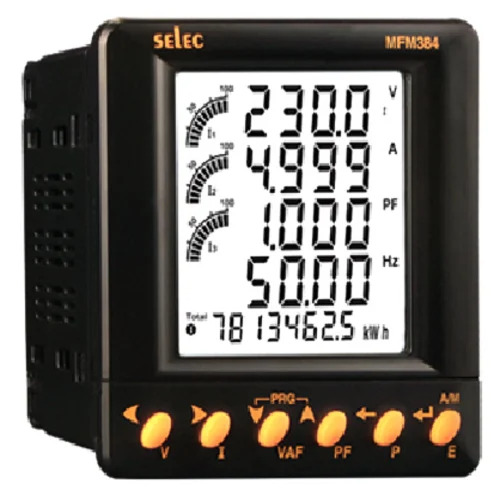

Selec Multi Function Meters Supplier in Surat

Name: Selec Multi Function Meters Supplier in Surat
Brand: Zeal Enterprise
Price: 800.0 INR
Availability: InStock

Price 800.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Selec Multi Function Meters Supplier in Surat Specification

Model
MFM384

Measurement Range
Voltage, Current, Power, Energy, Frequency, Power Factor

Protection
IP54 (front); IP20 (back)

Cut Size
92mm x 92mm

Signal Type
Digital

Connecting Type
Screw Terminals

Color
Black

Load Capacity
As per CT/PT ratio

Output
RS485 Modbus RTU

Frequency
45-65 Hz

Application Media
Electrical Panels, Distribution Boards

Mounting
Panel Mounting

Dimension (L*W*H)
96mm x 96mm x 57mm

Operating Temperature
0C to 55C

Measuring Units
V, A, kW, kWh, Hz, PF

Material
Polycarbonate Enclosure

Power Supply
80-270 V AC/DC universal

Power Consumption
<5 VA

Accuracy
Class 0.5 (as per IEC 62053-22)

Display Type
LCD Display with Backlight

Range
Voltage: 10-500V AC, Current: 0.05-6A AC

Phase Type
Three Phase / Single Phase

Maximum Demand Indication
Yes

Display Digit
4 Digit 7-Segment Display

Display Update Time
1 sec

Auxiliary Input
Yes (optional)

Current Input
Direct or via CT (5A/1A)

Communication
RS485 Modbus RTU

CT/PT Secondary
CT: 5A/1A; PT: 110V/63.5V

Energy Class
Class 1.0 as per IEC 62053-21

About Selec Multi Function Meters Supplier in Surat

Selec Multi Function Meters Supplier in Surat offers the latest and most acclaimed MFM384 meters-popular among industry professionals for their majestic accuracy and optimum performance. Featuring direct or CT input (5A/1A), these meters accommodate both three-phase and single-phase systems. With immaculate 4-digit 7-segment LCD displays, Class 1.0 energy accuracy (IEC 62053-21), and Class 0.5 measurement precision (IEC 62053-22), they promise reliable monitoring. Key highlights include IP54 front protection, RS485 Modbus RTU communication, polycarbonate enclosure, universal power supply, and broad voltage/current ranges, making them ideal for electrical panels and distribution boards.

Ideal Application Sites and Features

Selec Multi Function Meters from Surat are designed for seamless panel mounting in electrical panels and distribution boards. Their advanced features, such as immaculate precision, direct/CT input capability, and LCD backlit displays, cater to a range of application needs. The installation process involves straightforward screw terminals, ensuring reliable connections and secure operation in both commercial and industrial settings. This versatility makes them optimum for monitoring voltage, current, power, frequency, and energy consumption.

Main Export Markets, Supply Ability, and Cost Valuation

Selec Multi Function Meters Supplier in Surat has garnered considerable valuation in main export markets such as Asia, Africa, and the Middle East. With a robust supply ability, the supplier ensures consistent product delivery while adhering to various payment terms for efficient expenditure management. Customers benefit from the lowest price offering, making these meters highly cost-effective for large-scale and ongoing industrial projects, while guaranteeing reliable performance and certified quality standards.

FAQ's of Selec Multi Function Meters Supplier in Surat:

Q: How does the Selec Multi Function Meter ensure accurate energy measurement?

A: The meter achieves immaculate accuracy with Class 0.5 (IEC 62053-22) for measurement and Class 1.0 (IEC 62053-21) for energy reading, making it reliable for critical monitoring in electrical panels and distribution boards.

Q: What are the main applications for this multi function meter in Surat?

A: These meters are widely used in monitoring voltage, current, power, frequency, and energy within electrical panels, distribution boards, and other industrial or commercial electrical setups.

Q: Where can this meter model (MFM384) be installed?

A: The MFM384 is designed for panel mounting with screw terminals and fits a cut size of 92mm x 92mm. It is suitable for installation in control panels, switchgears, and distribution boards.

Q: What makes these meters suitable for international export markets?

A: They are acclaimed for universal power supply, optimum protection ratings, RS485 Modbus RTU communication, and easy installation, all of which meet international standards and ensure versatility for global clients.

Q: What are the benefits of using a polycarbonate enclosure and IP54 protection?

A: The polycarbonate material ensures immaculate durability, while IP54 (front) and IP20 (back) protect the meter from dust and water, enhancing longevity and safe usage in demanding environments.
